Japan Mogami 3368 Electric Guitar Cable Neutrik Silent Plug

Estimated Tracked Delivery: (7 – 11 Days)

Specifications:

Interface type: 6.5 silent to 6.5
Wire: Mogami 3368
Wire diameter: 8.0mm
Wire material: OFC (Oxygen free copper)
Plug: NEUTRIK
Plug material: Copper
Welding: Hand soldering using 5% silver solder

Packing List:

1 x 6.5 to 6.5 cable

NOTE:

——Please allow 1-3cm (0.4-1.18″) difference due to manual measurement and slight colour variation for different display setting.

——The brand of wire we used for this custom cable assembly: Mogami, one of the most sought after Pro cable brands, preferred by major recording studios and leading sound engineers around the world. All Mogami cables are made in Nagano – Japan using the best materials and technological expertise of decades of R&D.

——3368 is a new cable designed for truly high performance sound while simultaneously being rugged enough for live stage and performance use. This large diameter cable is designed with lower capacitance for the purest possible sound, while not being so low to cause performance problems by being outside the design range of available instrument pickups. Coaxial configuration gives the most accurate tone.

——A challenge for large diameter coaxial cables is that the center conductor must move inside the structure when the cable is flexed, so such cables can be delicate when handled roughly.The proprietary composite braid shield structure of 3368 makes the cable quite rugged, and this new design maintains flexibility and performance even when used in a stage and touring environment.A new method has been used to keep handling noise extremely low, so this cable can be used for any application where high impedance circuits (guitar pickups, sensor cables) with very low loss are needed.

① The shielding layer adopts 167-core ultra-high density oxygen-free copper and dead angle shielding net, which can effectively shield electromagnetic and radio frequency interference. Avoid annoying background noise, hum, hum.

② The 5.3 mm thick thermal insulation layer uses XLpE (cross-linked polyethylene). This material has very good electronic properties and can prevent the shrinkage of the wire when it is welded at high temperature.

③ 20 Awg ultra-thick oxygen-free copper inner core, with copper content up to 99.99%, the sound is purer, the degree of reduction is higher, the details are richer, the dynamics are higher, and the impedance is lower.

④ Double carbon fiber PVC shielding layer can effectively solve the problem of broken sound and noise caused by the pulling and flicking of the cable when the musician walks back and forth on the stage during the performance.

——The brand of connector we used for this custom cable assembly: The NP2X-B is the latest and the highest-end offering by Neutrik AG-Liechtenstein, the world’s leading brand for professional audio connectors.PX series offers greater reliability, improves contact integrity and reduces cable strain, comes in a Black metal housing and features Gold plated contacts.

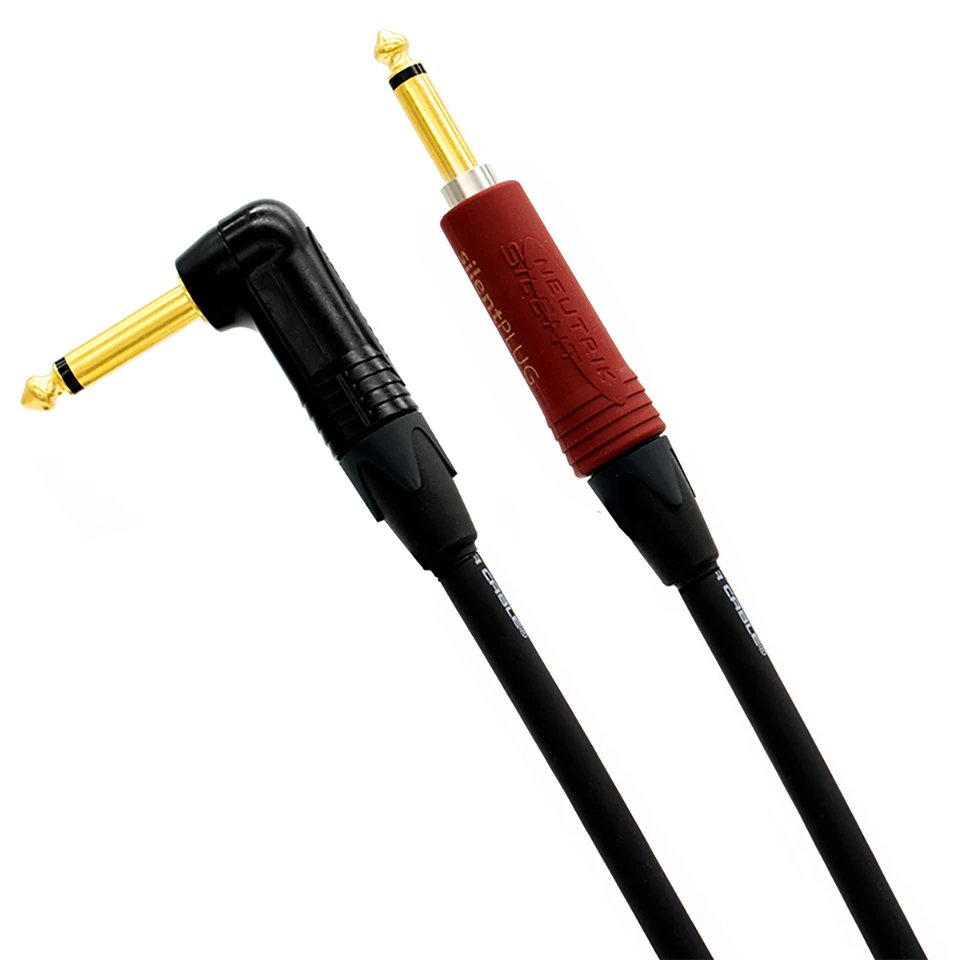

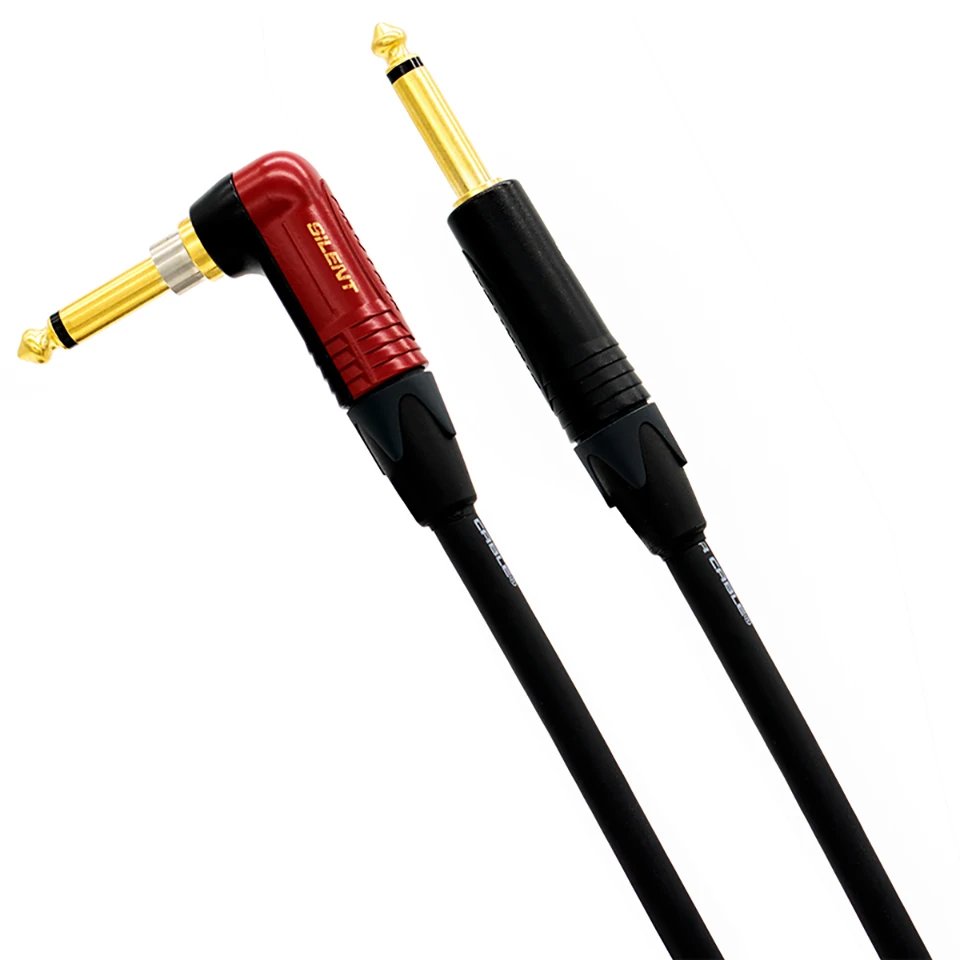

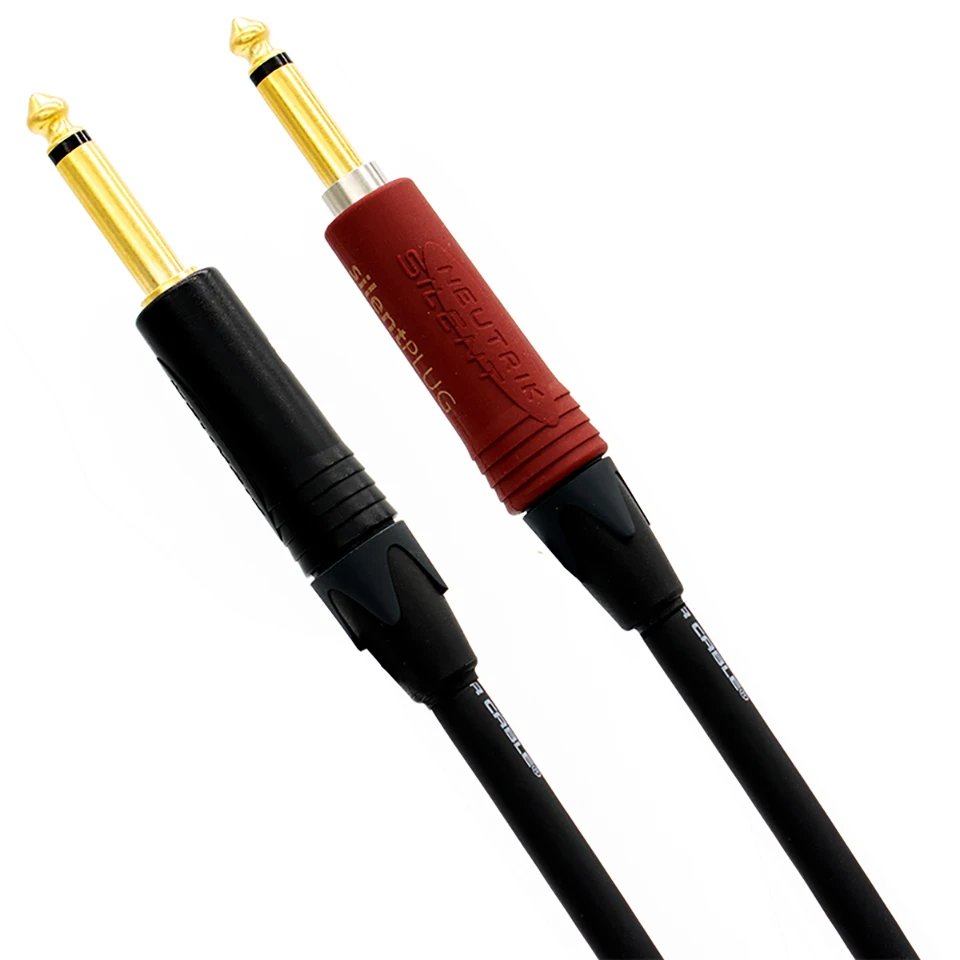

——The silentPLUG automatically mutes (shorts) an instrument (guitar) cable to avoid pops and squeals when changing the instrument (guitar) under load. The integrated silent switch (pat. pending) is based on REED-technology and guarantees a lifetime beyond 10 ‘000 mating cycles. The new PX silentPLUG features a rugged metal shell enhanced with a rubber cushion overlay for improved shock protection.

ATTENTION!

——For use with instrument (guitar) applications only. Damage may occur if connected to amplifier output.

——Please note that the signal isn’t muted with some types of active electric guitars which are equipped with tip-ring-sleeve jacks that tap to activate the guitar power supply.

——The welding is purely manual welding, and the solder joints are made of lead-free solder containing 5% silver with constant temperature welding, and each solder joint is full and smooth.

——-Each welding point is sealed with a heat shrinkable tube after welding to improve the oxidation resistance of the welding point and ensure a long sound
——-The same, while improving the tensile resistance and durability of the wire.

SPECIFICATIONS:

Part No. :3368
No. of Conductor
Details: 50/0.12OFC
Size (mm2 ):0.565mm2 (#20AWG)

Semi-Conductive Layer
Ov. Dia. (mm) :1.5 (0.059″)
Material:Conductive PE
Colours: Black

Insulation
Ov. Dia. (mm): 5.3 (0.209″)
Material:CPE
Colors:Natural

Sub-Shield
Ov. Dia. (mm) :5.7 (0.224″)
Material:Conductive PVC
Colours:Black

Shield
Type:Composite Braid Shield
Details:0.12OFC/7/12 + 167Dtec/2/12

Jacket
Ov. Dia. (mm) :8.0(0.315″)
Material:PVC
Colours:Black
