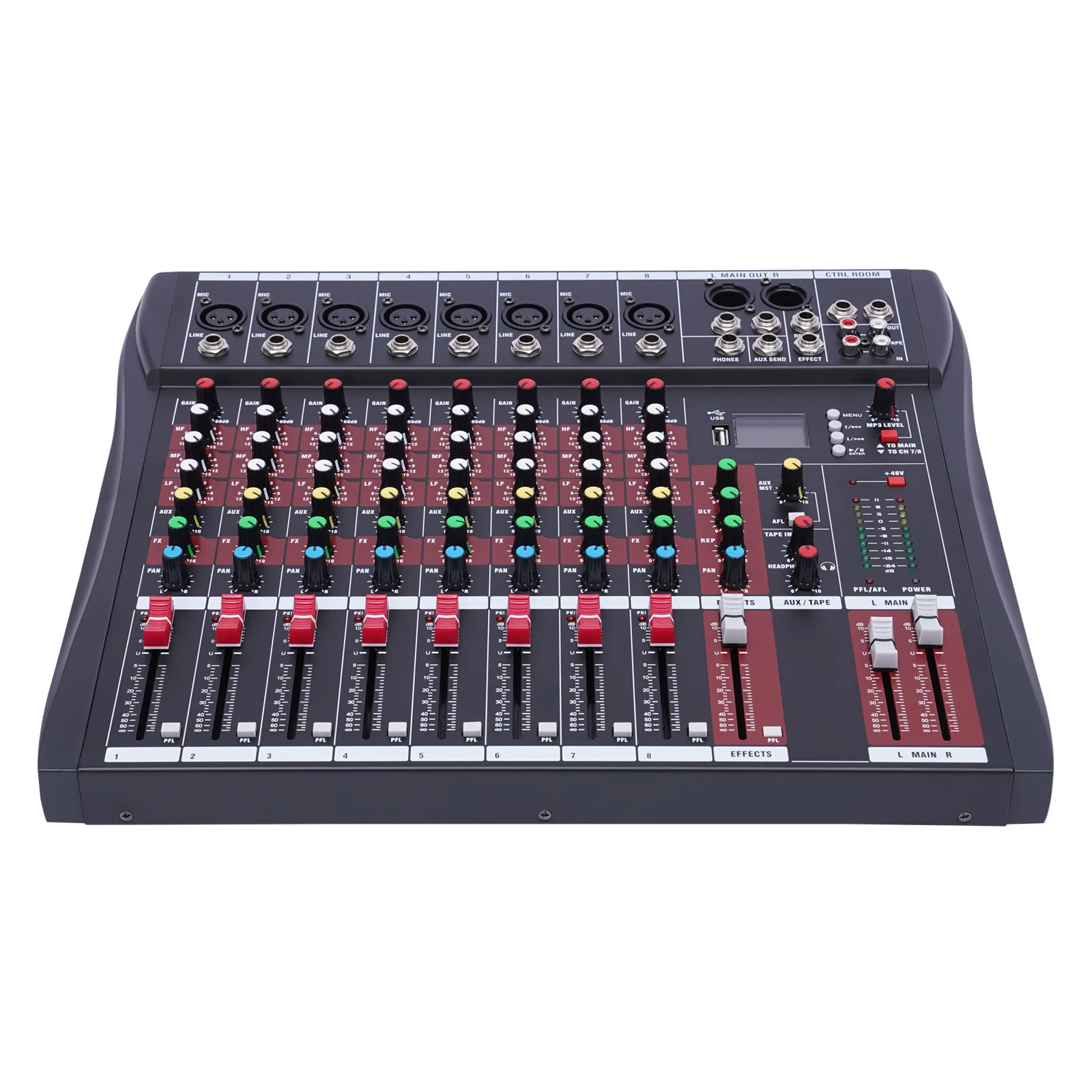

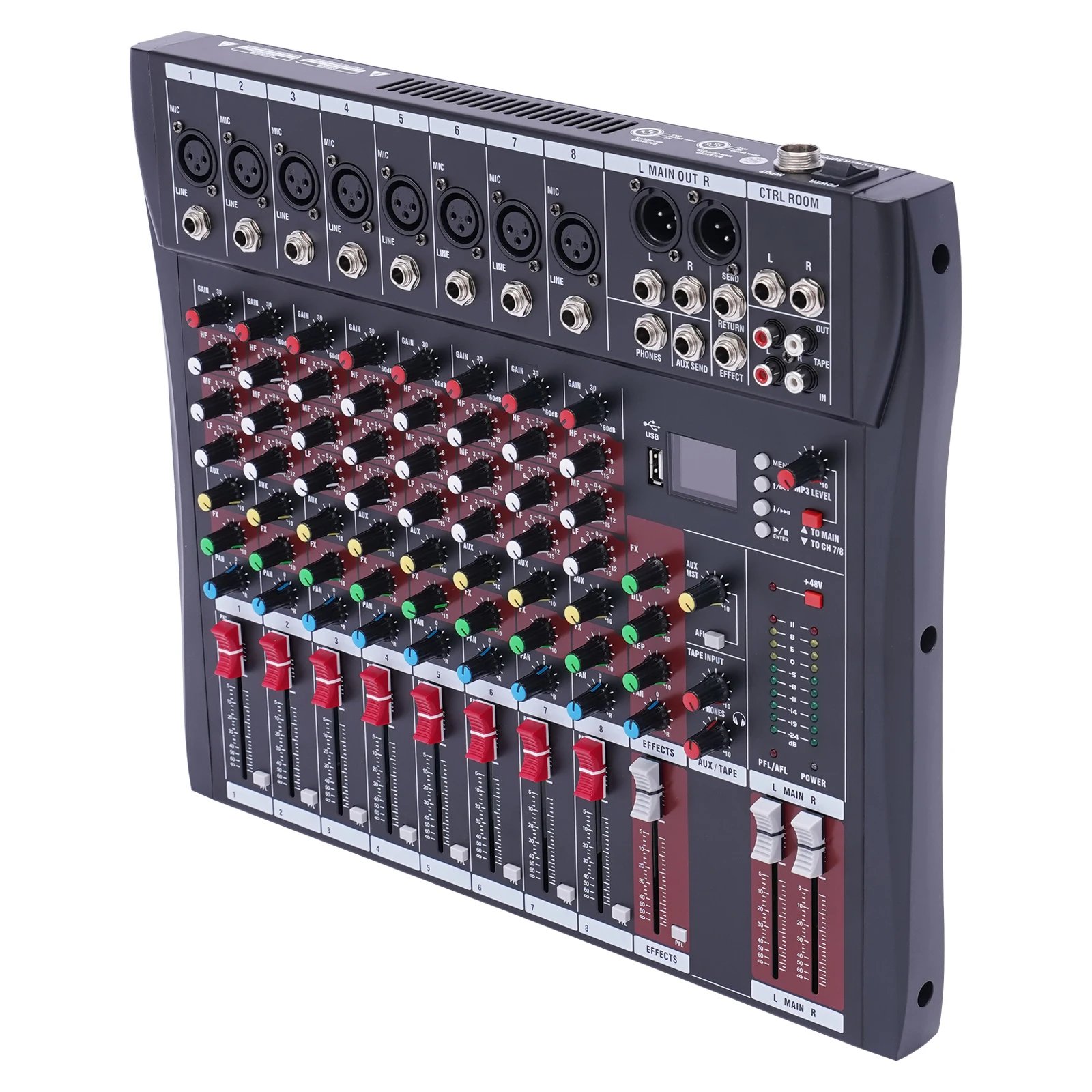

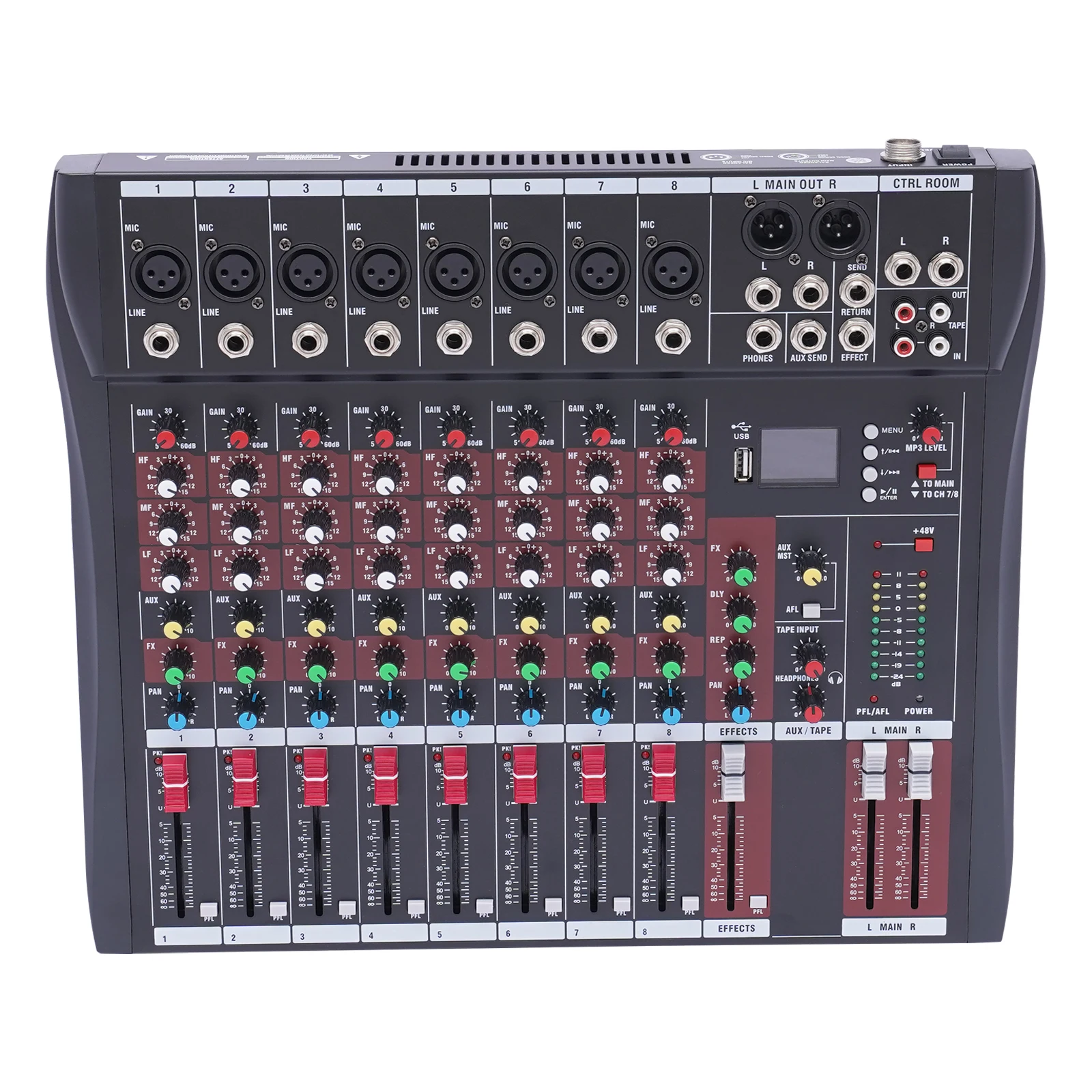

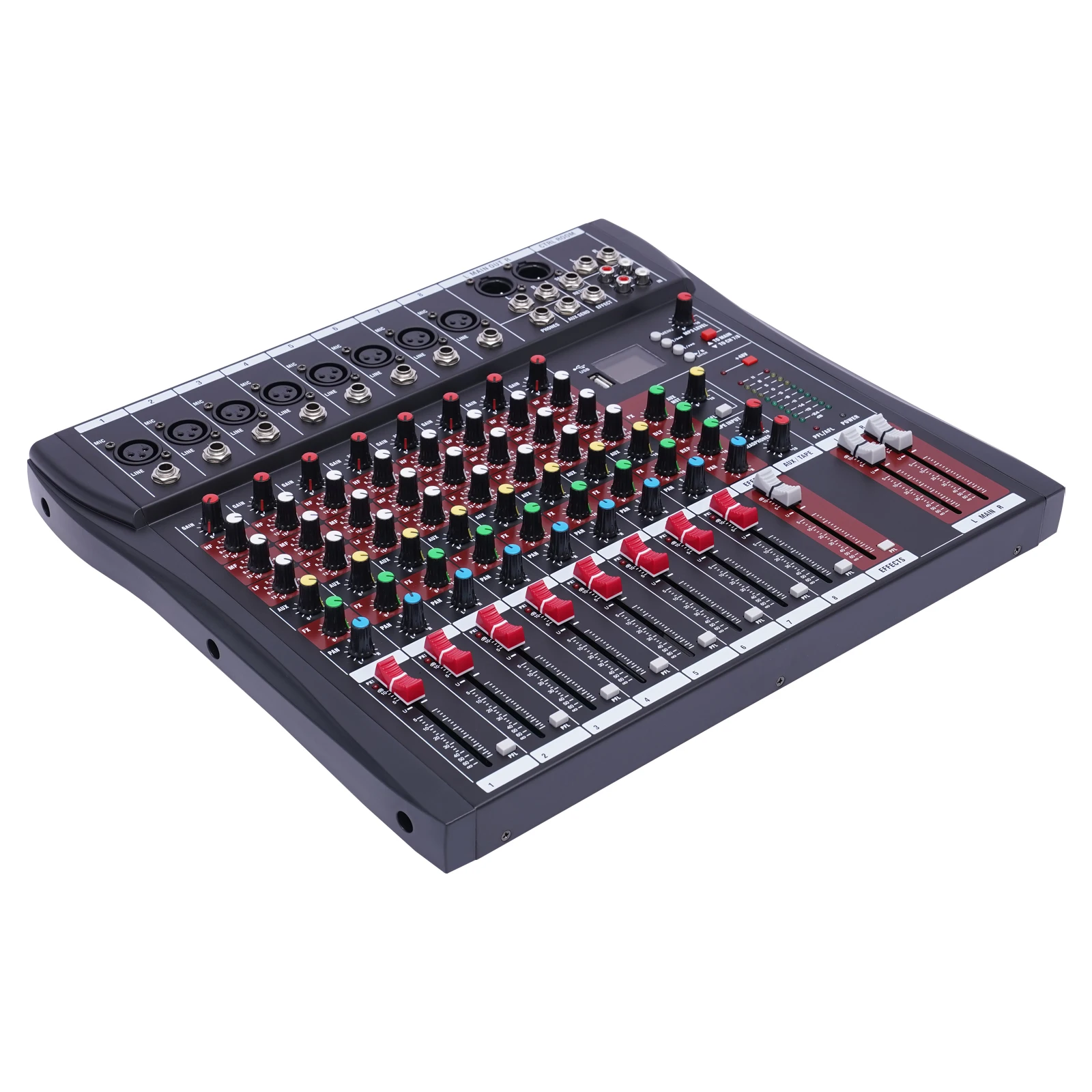

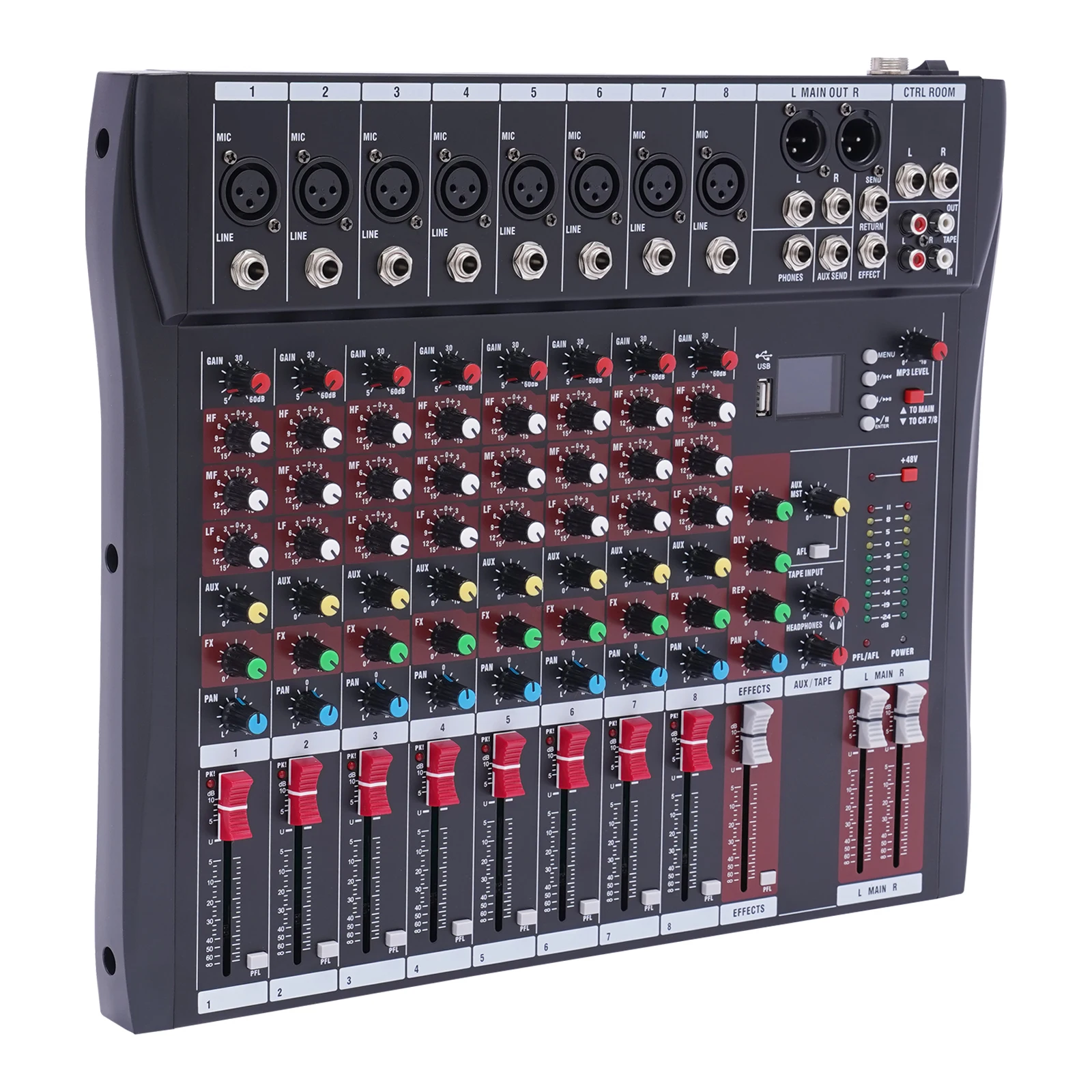

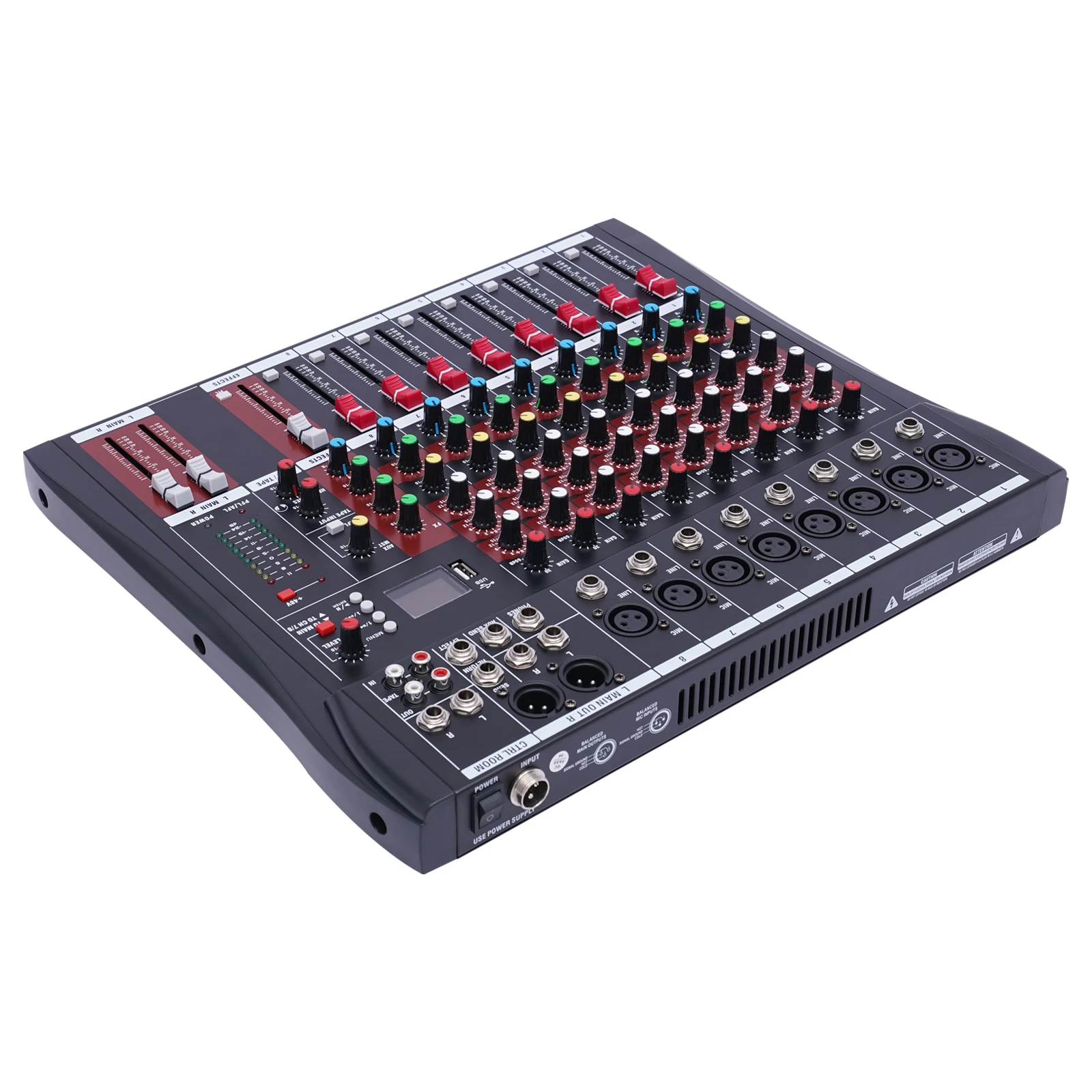

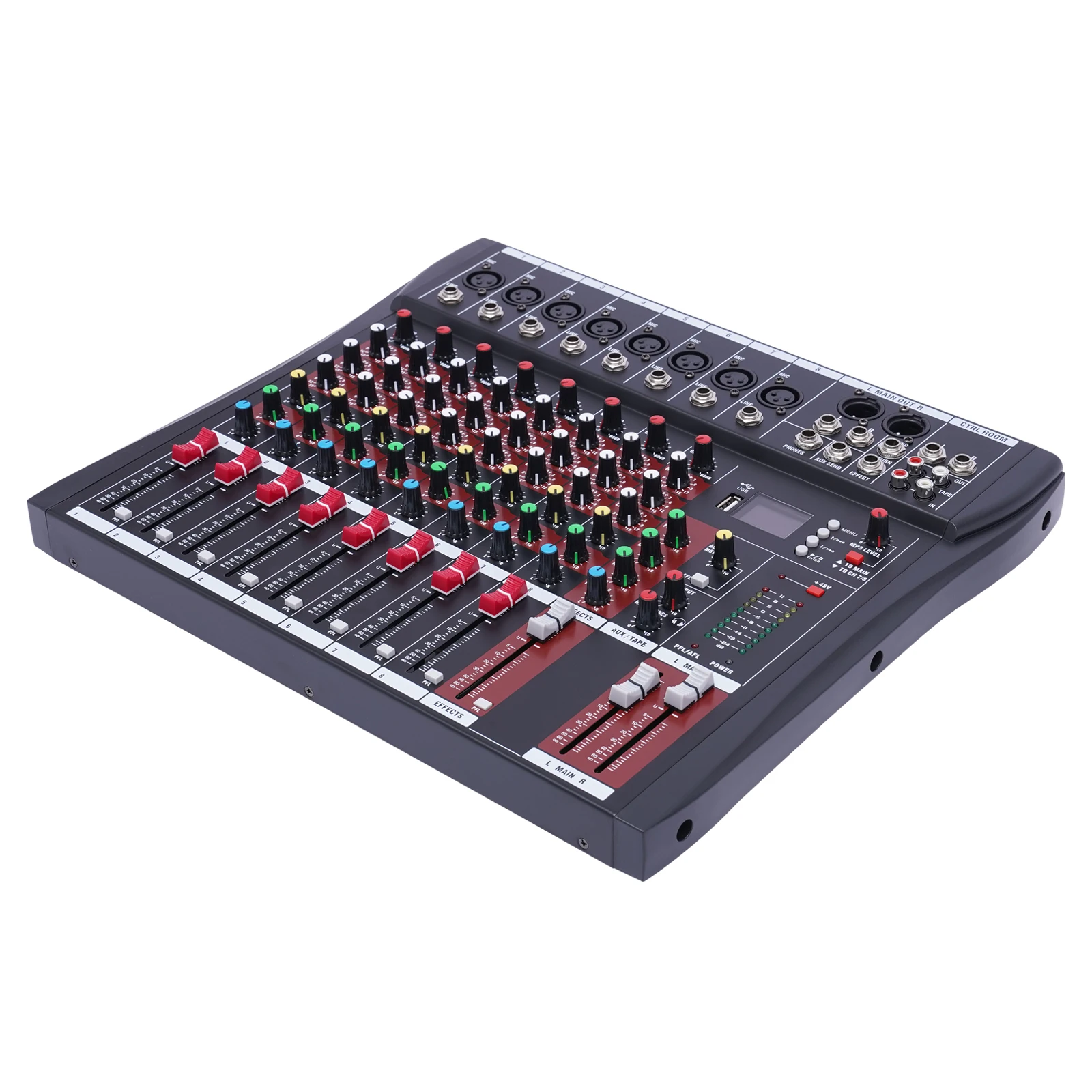

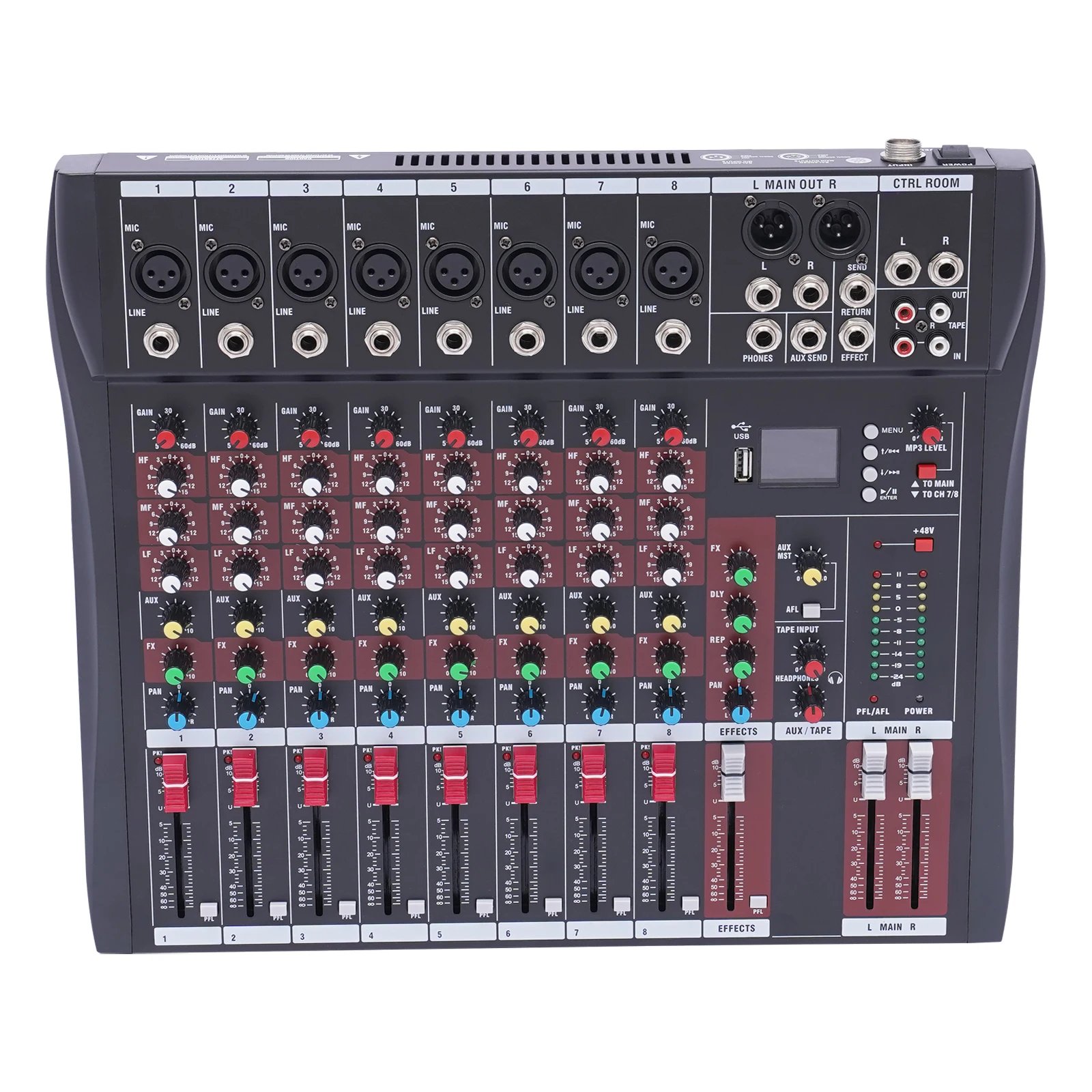

8 Channel Professional Digital Audio Mixer
Description:
When inspiration strikes, you can immediately turn on this audio mixer to keep it. What a wonderful experience it is! It adjusts the music in sections, making the vocal effect rich and natural. You can also turn on the reverb mode to create dynamic BGM. It allows you to create music without the limitations of the equipment’s stagnant dream!
Application:

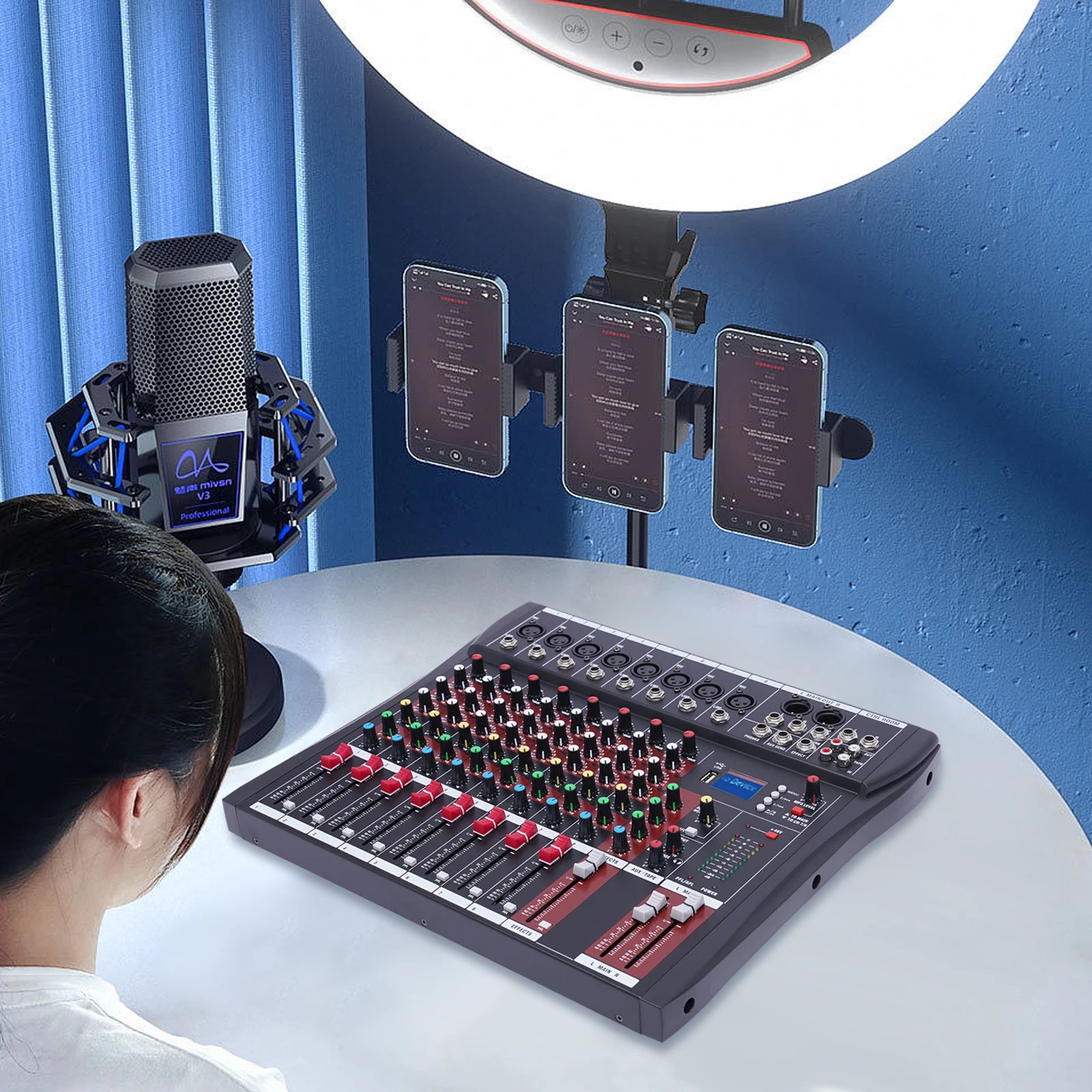

It is suitable for home KTV, campus language, conferences, bars, stage performances, music dining bars, recording studios, etc.
Specification:
Material: ABS
Colour: Black
Number of Channels: 8
Plug: UK Standard
Power Source: Corded Electric
Connection Technology: USB, Bluetooth
Input: AC 230V 50HZ 18W
Output: AC18V*2 350mA
Maximum Input Level of the Microphone: + 24dBu
Maximum Input Level of the Line: + 24dBu
Maximum Output Level: XLR Card + 26dBu
Main Level Meter: 10-segment LED, -24 dB to CLIP
Frequency Response: 20Hz-30Khz ± 0.5dB
Maximum Input Power: 18W
Total Chopping Distortion (RHD + N): <0.01%.
Crosstalk (1 kHz): Fader off> 85 dB Channel> 82 dB
Noise (22Hz-22KHz): Equivalent Input Noise -122dBu Remaining Output Noise <-90dBu
Mono / Stereo Channel EQ: High Frequency +/- 15 dB, 12 kHz Low Frequency +/- 15 dB, 80 kHz High IF +/- 15 dB, 2.5 kHz
Mono: XLR Balanced, 2-pin Hot End, 2Kohm, Sensitivity -60-14dbu TRS Balanced, Tip Hot End, 10Kohm, Sensitivity -40+14dbu XLR Fantasy Power +48V
2-track Return: RCA-seat, Unbalanced, 4K ohms, -2dBu
2-track Gear: RCA-seat, Unbalanced, <75 Ohm, -2dBu
L / R Output: XLR, Balanced, Hot End of the Tip, <75 ohms, + 4 dBu, Max + 22 dBu
FX / AUX Output: TRS, Unbalanced, Hot End of Tip, <75 ohms, -2dBu, max + 18dBu
Headphone: TRS, Tip L, Ring R, Recommended Headphones with 30 to 600 ohms
Bluetooth Wireless Control Range: Max 4.6m/15ft
Package Size: 41*35*5cm/16*13.4*2in

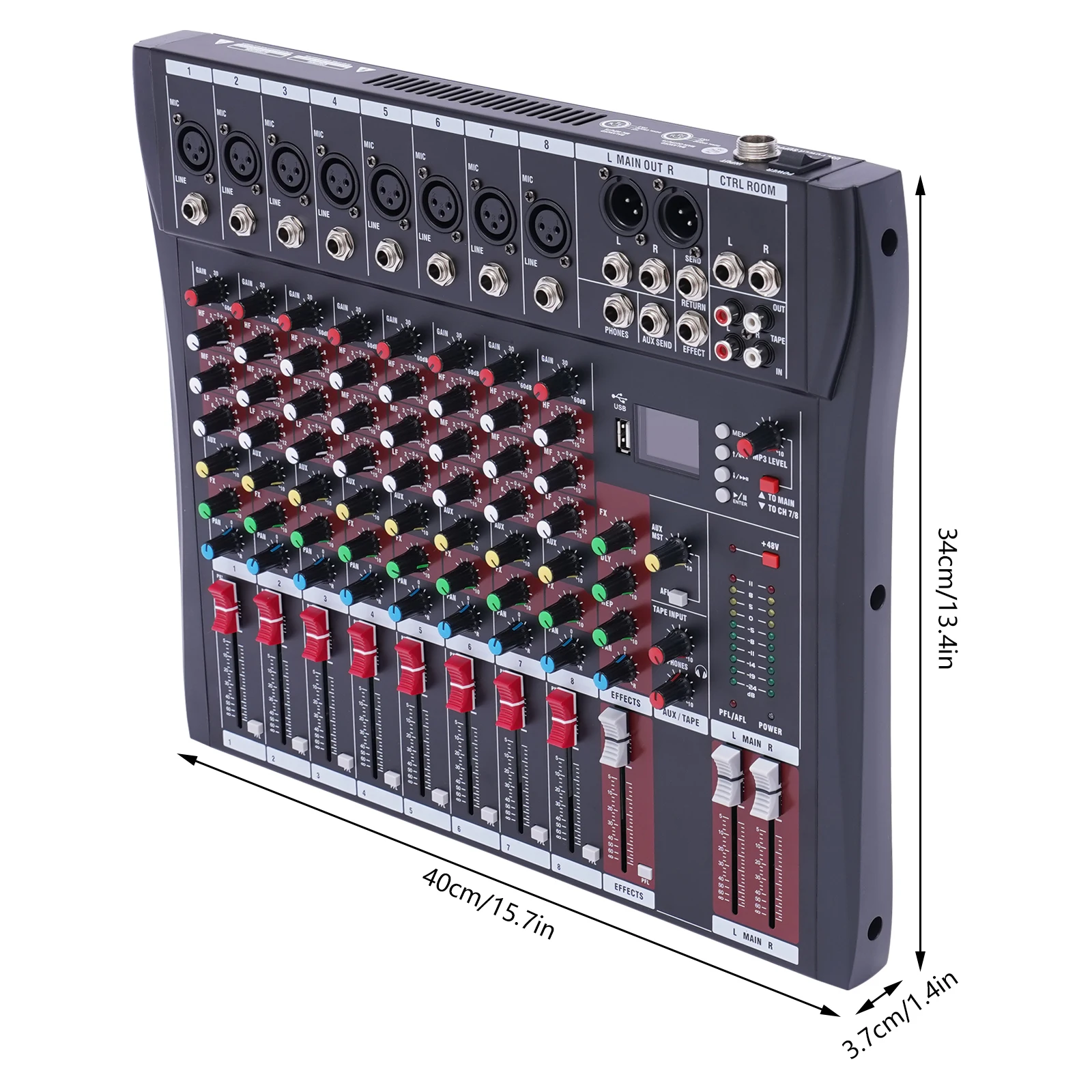

Product Size: 40*3.7*34cm/15.7*1.4*13.4in
Gross Weight: 4.6kg/10lbs
Net Weight: 4.4kg/9.7lbs

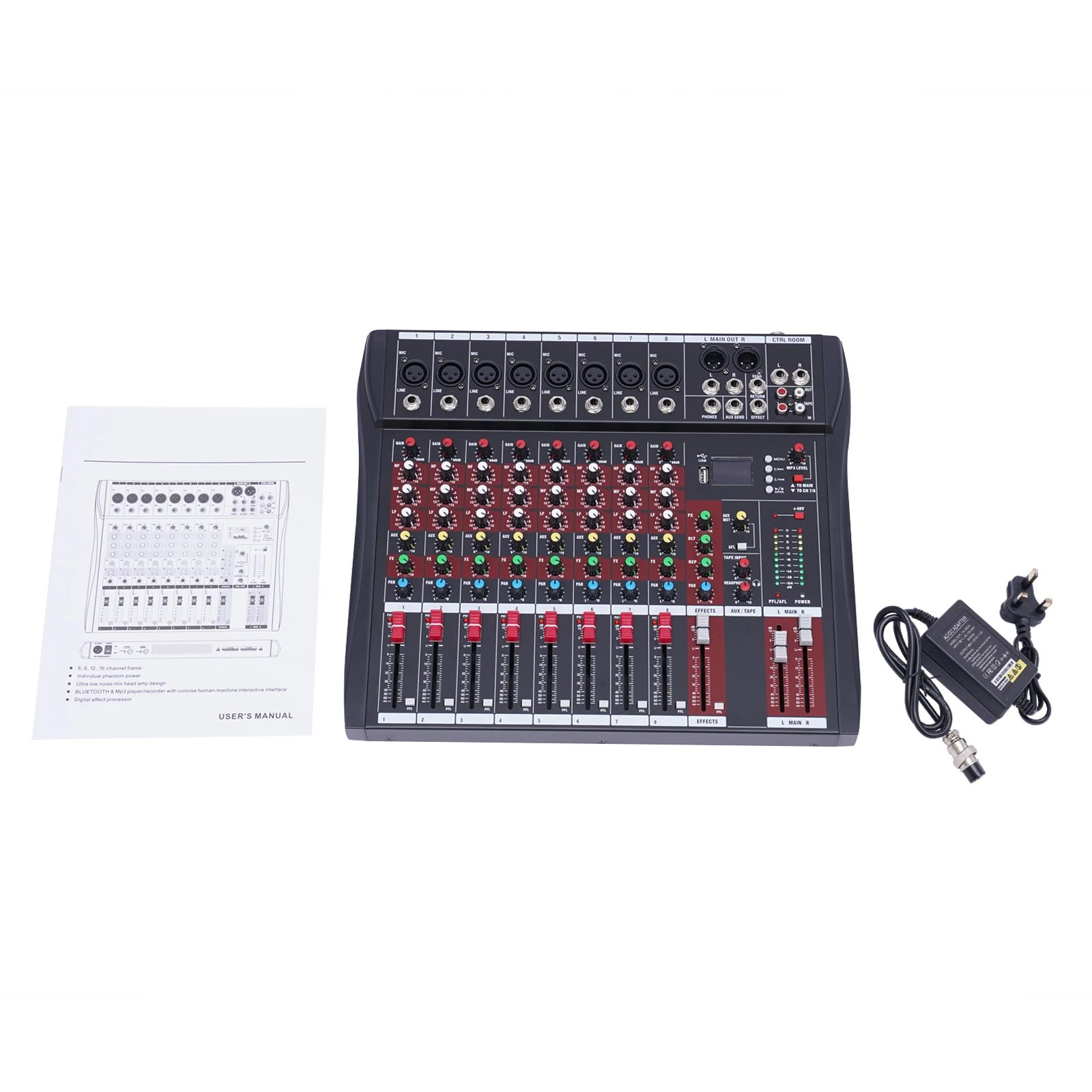

Package Includes:
1 x Audio Digital Mixer

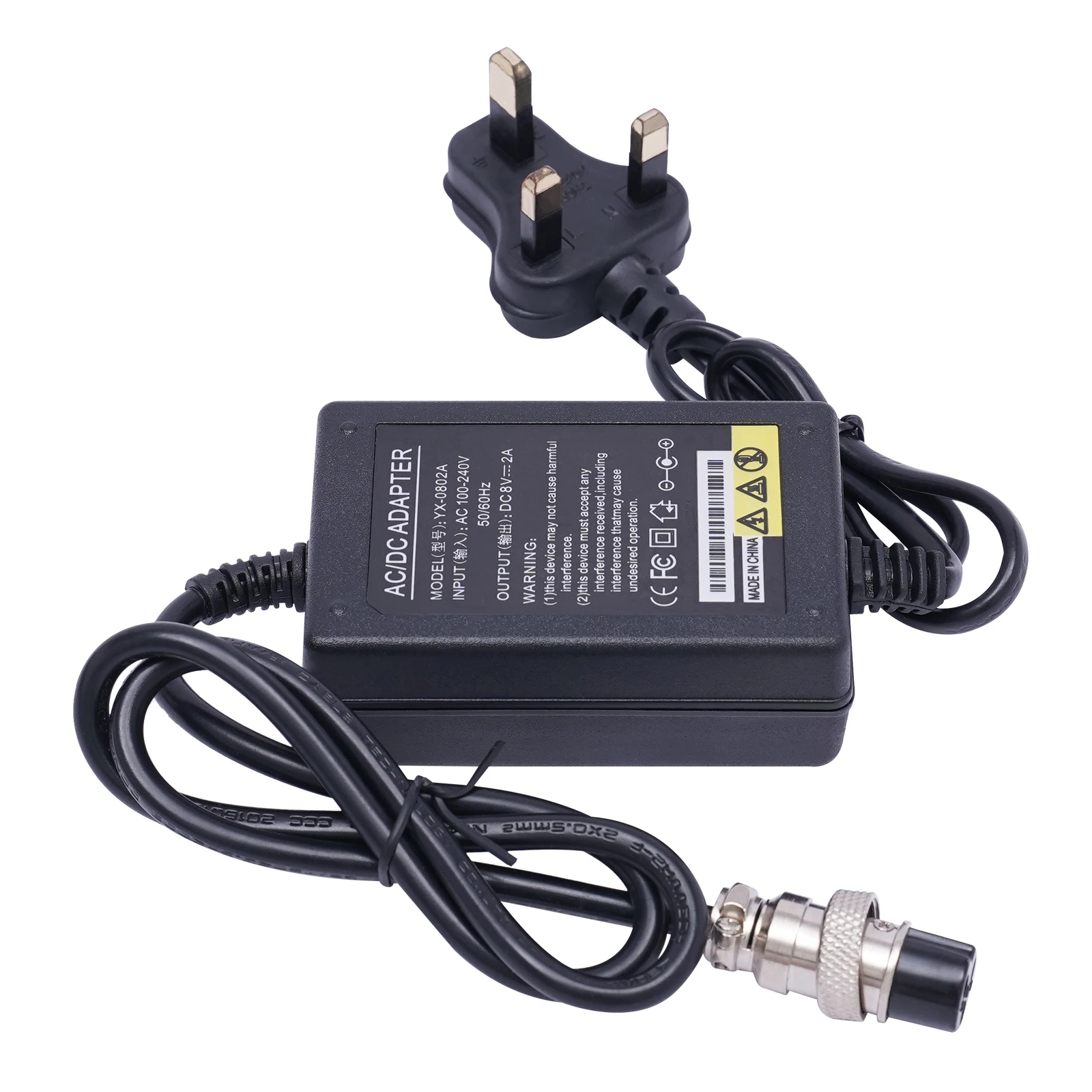

1 x Power Adapter

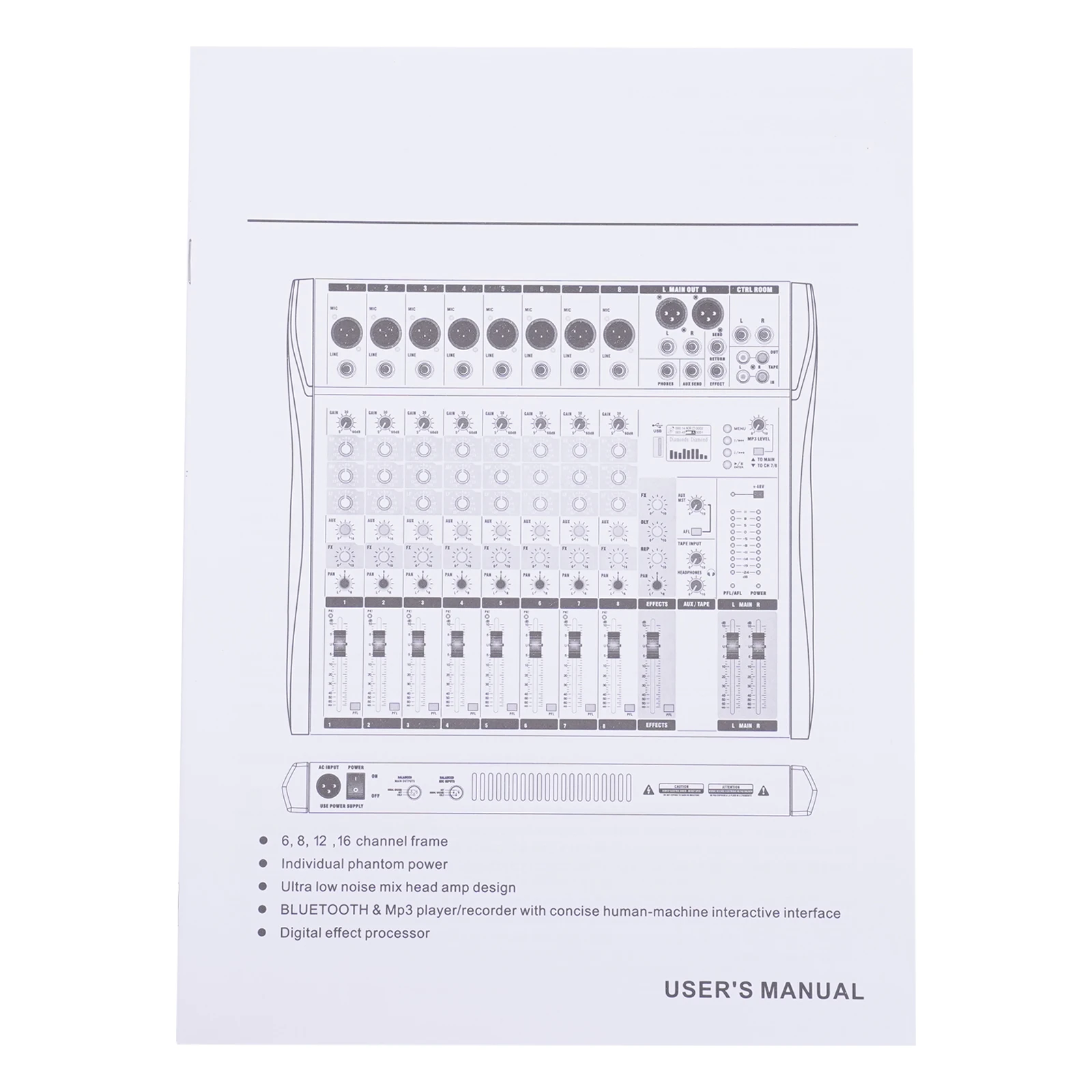

1 x English Manual
Key Features

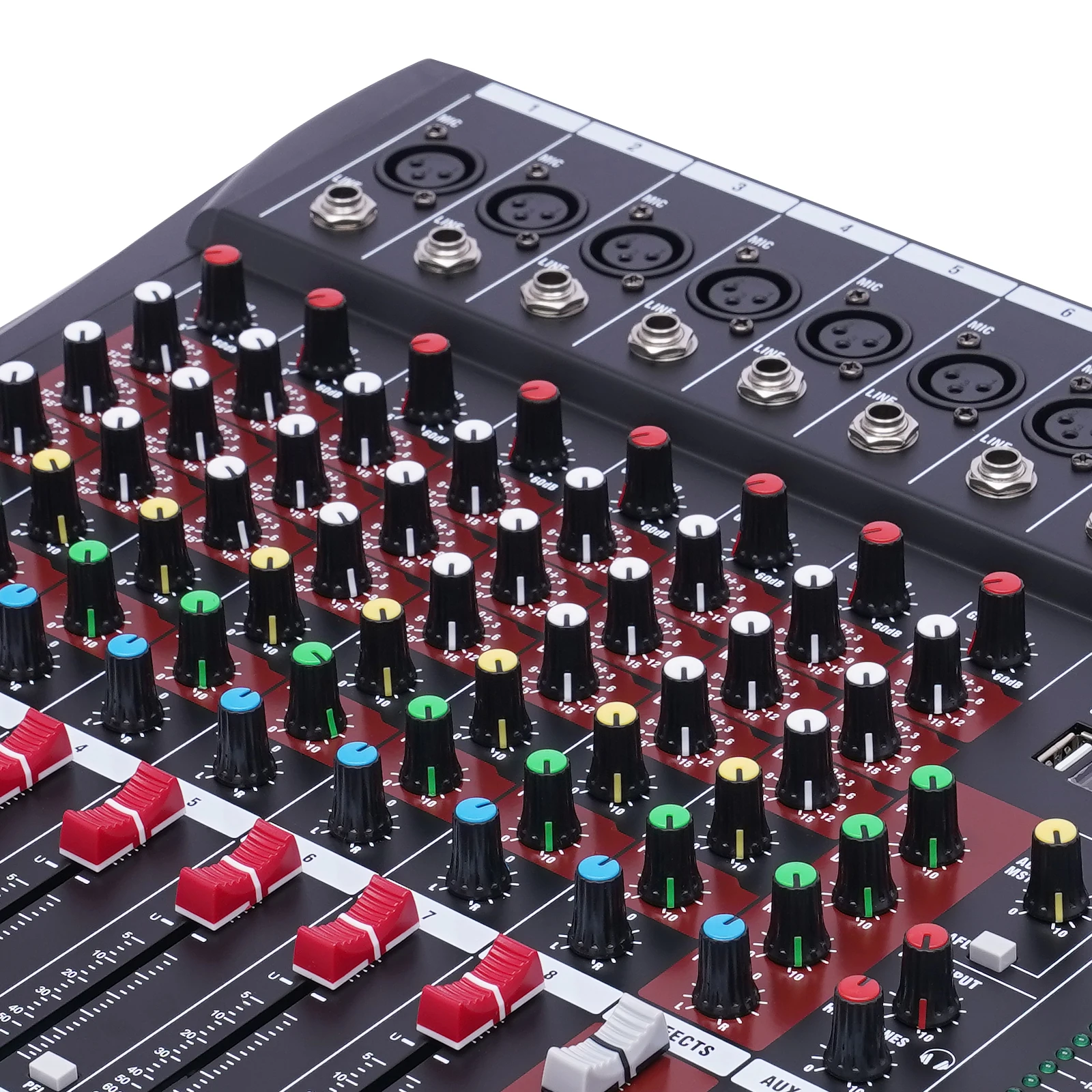

Three-band Equalizer: It is equipped with a three-band equalizer for the main channel, so you can independently control the high / medium/low voice, so that the voice quality levels are richer, to bring you a wonderful musical feast.

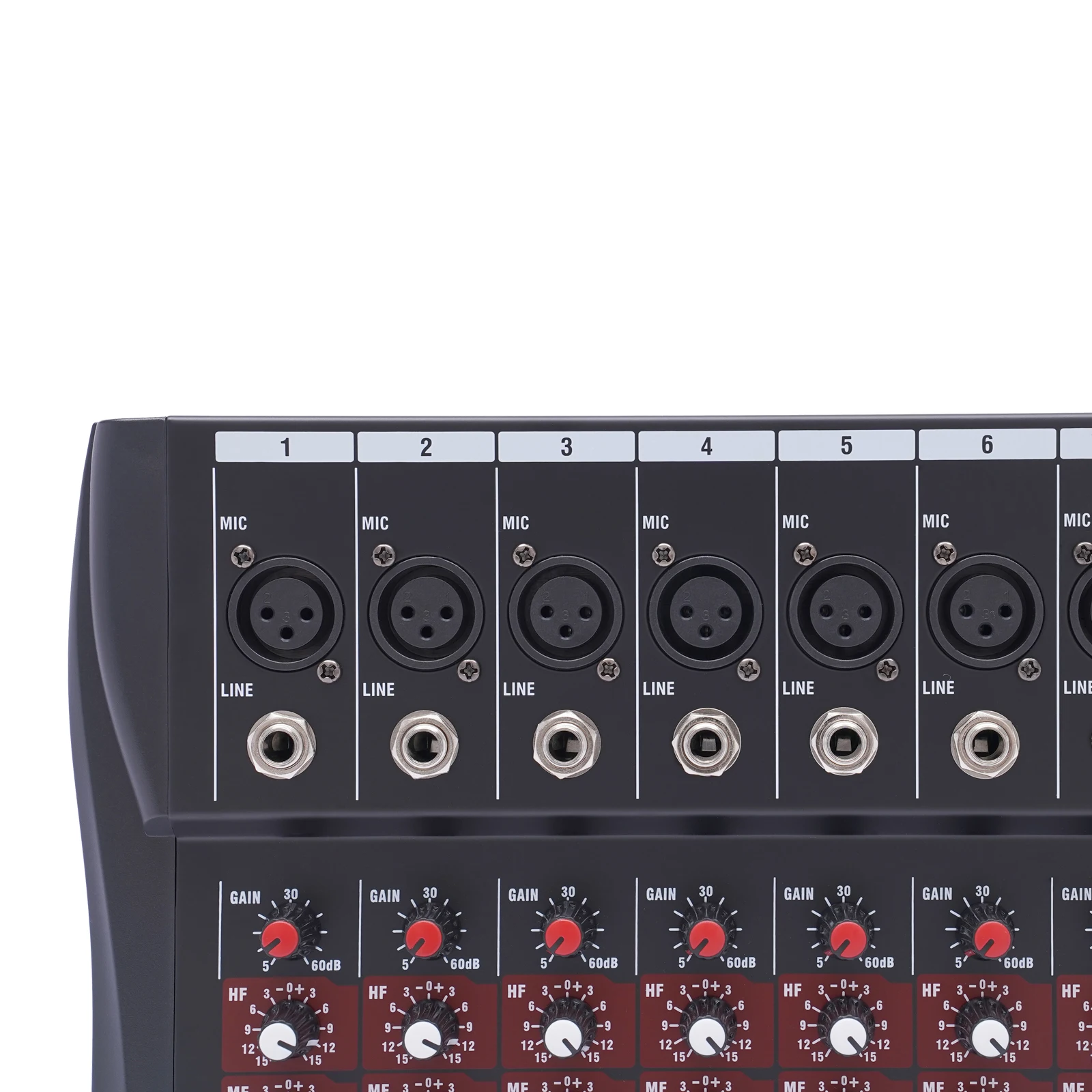

8-channel Microphone Input: It is very suitable for the connection of multiple devices, as it has 8 channels. At the same time, it meticulously processes various audio signals to obtain excellent sound.
Multiple Connections: With its built-in Bluetooth module and wireless range within 15 feet, it is compatible with TVs, desktop computers, laptops, cell phones, tablets and MP3 devices, making it easy to turn your home into a professional recording studio.
Real-time Monitoring: The audio mixer has a monitor headphone interface, which allows access to headphones to monitor the level signal of each channel in real-time, providing you with a stepping stone to becoming a professional mixer!
Easy to Use: It comes with headphone volume, total volume, reverb volume, and channel volume adjustment faders to accurately adjust the volume of each sector. Or you can use a USB cable to connect it to your computer for tuning to create a better sound.
+48V Phantom Power: It uses 48V phantom power to enable the use of professional recording condenser microphones, creating a professional-grade tuning experience for you and supporting wireless, wired, condenser and other microphones, making the product more widely used.
Ultra-thin and Sturdy: It is made of high-quality ABS, which is hard and rust-proof.Only a 1.46inch thin design makes it a lightweight and delicate body, so you can carry it around with you and enjoy the brilliance of music creation.

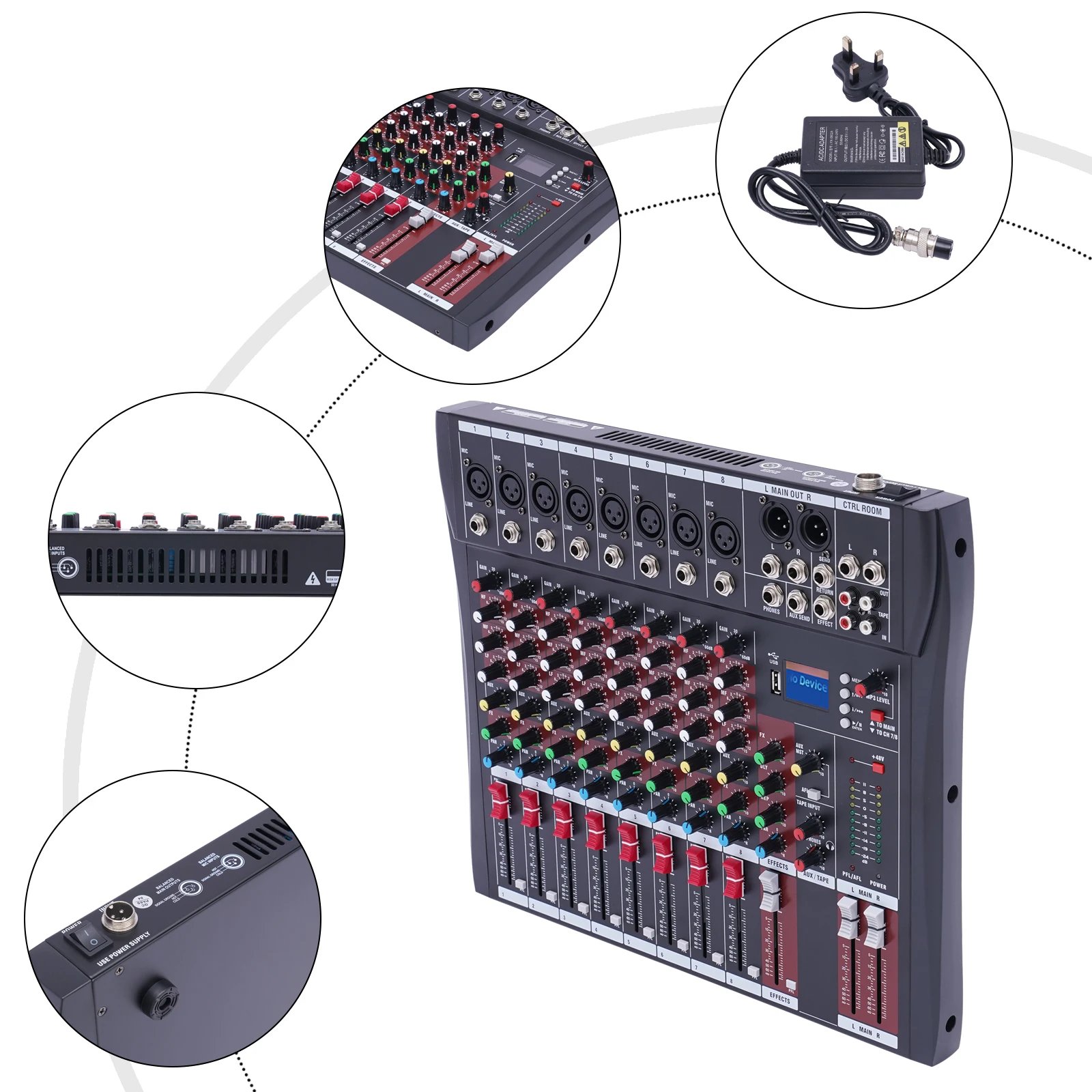

Details:

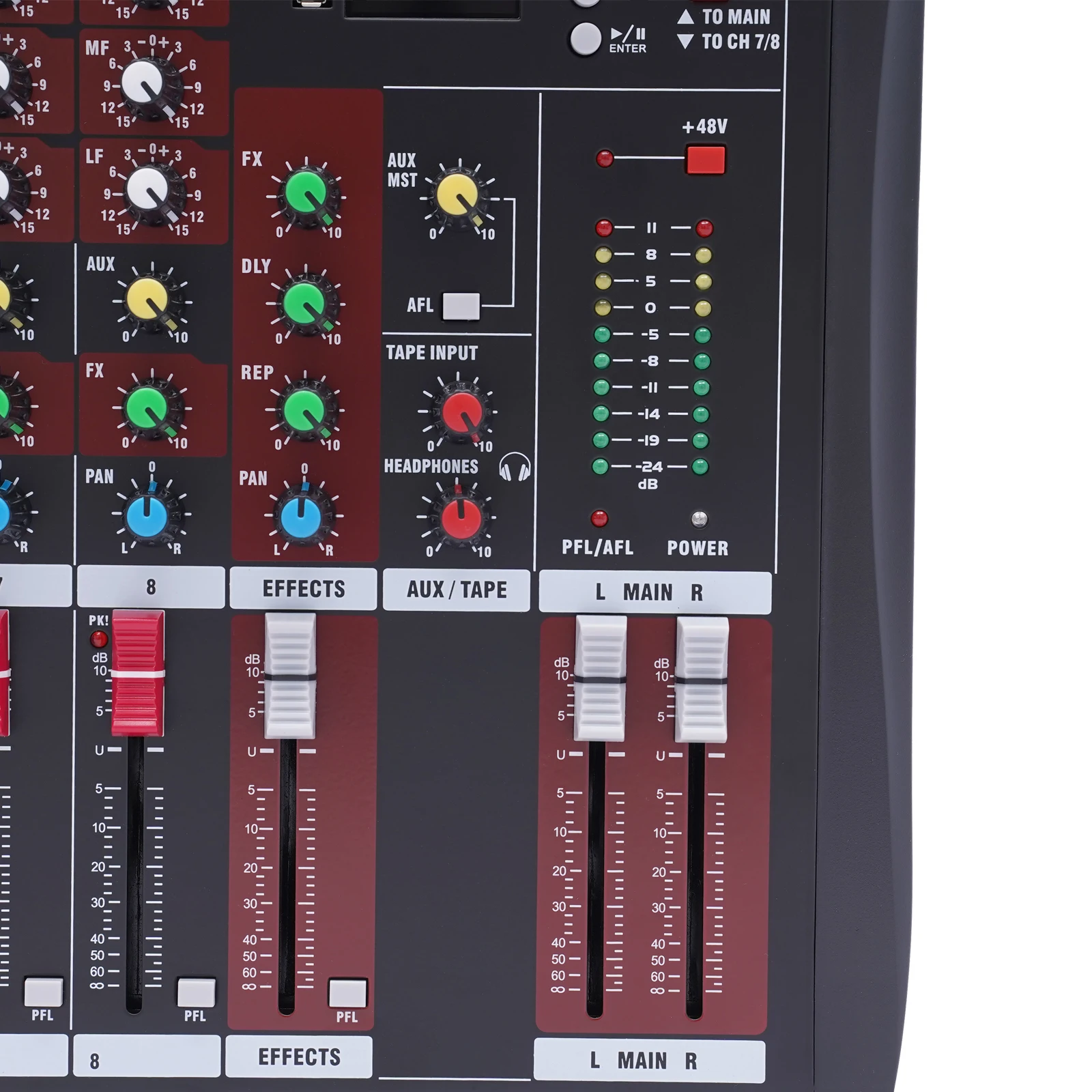

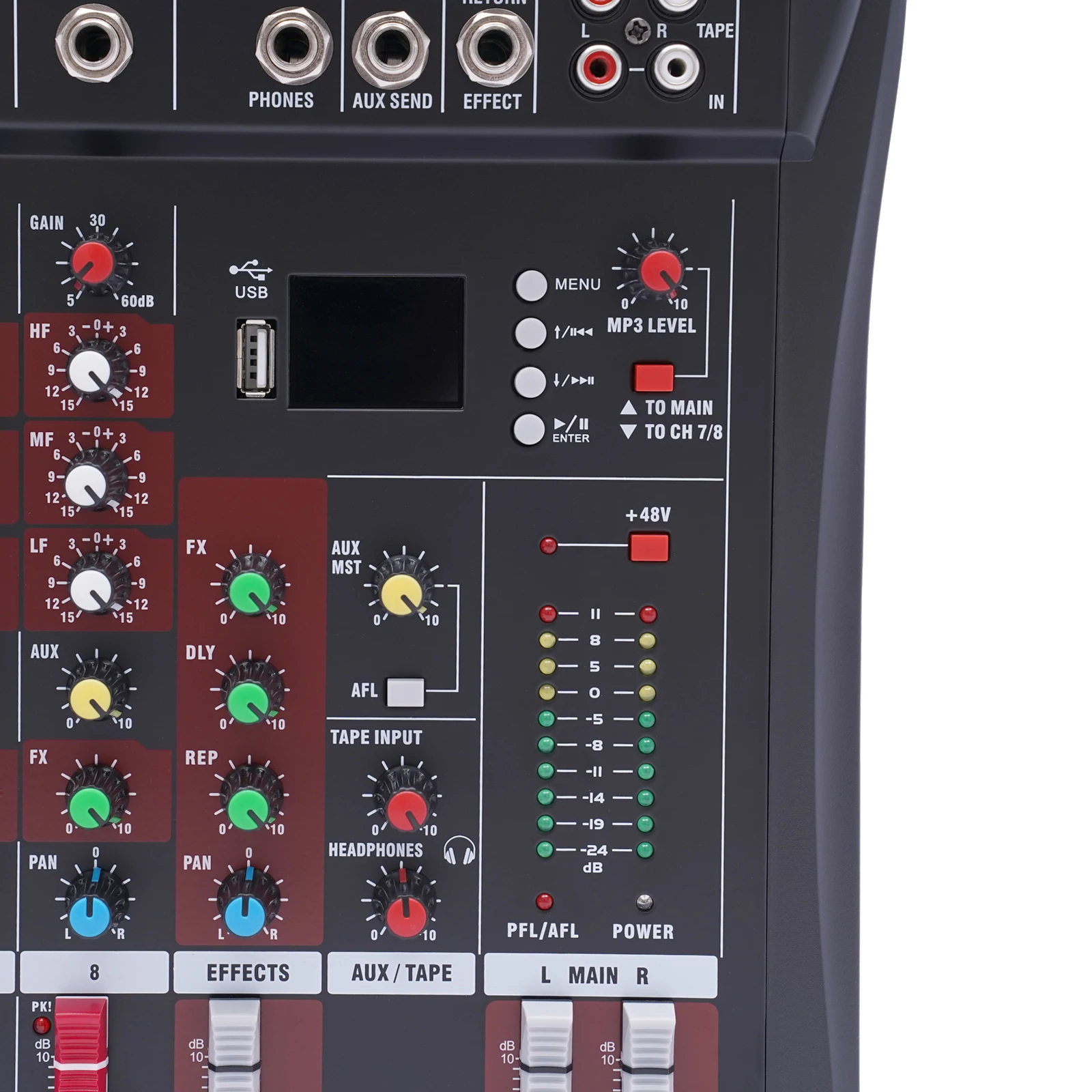

Indicators: The left and right channels each have a 10-segment level peak indicator, allowing you to grasp the signal condition in real-time and accurately adjust to avoid overload on the amplifier and speakers caused by adverse effects.

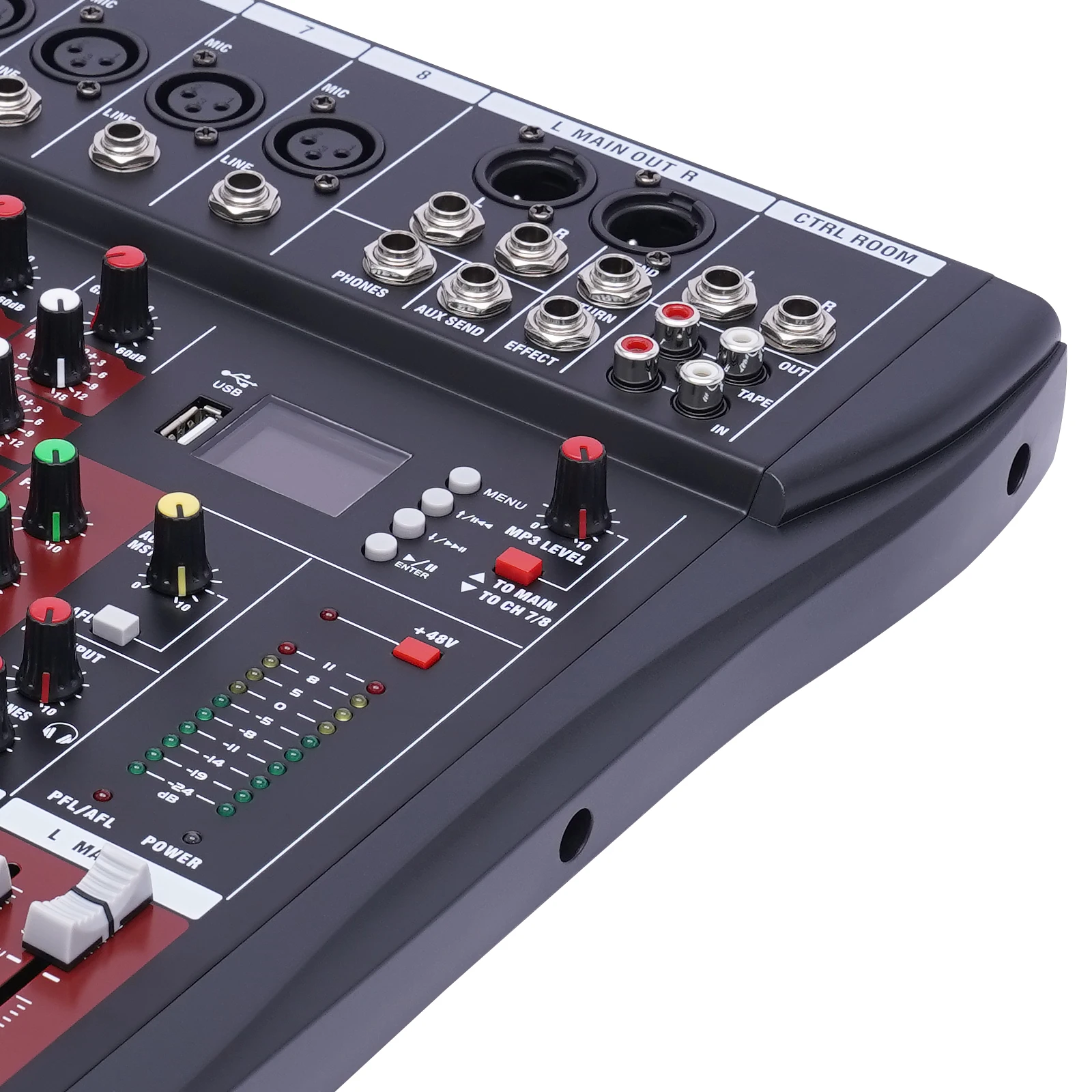

USB Slot: The USB slot lets it connect to portable audio devices like USB drives or MP3s, so you can tune in anywhere, anytime!
LCD Display: There is an LCD screen on this product that displays system functions in real-time so you can easily adjust them.
Strip Heat Sink: The product comes with a strip heat sink on top to extend the life of the product.

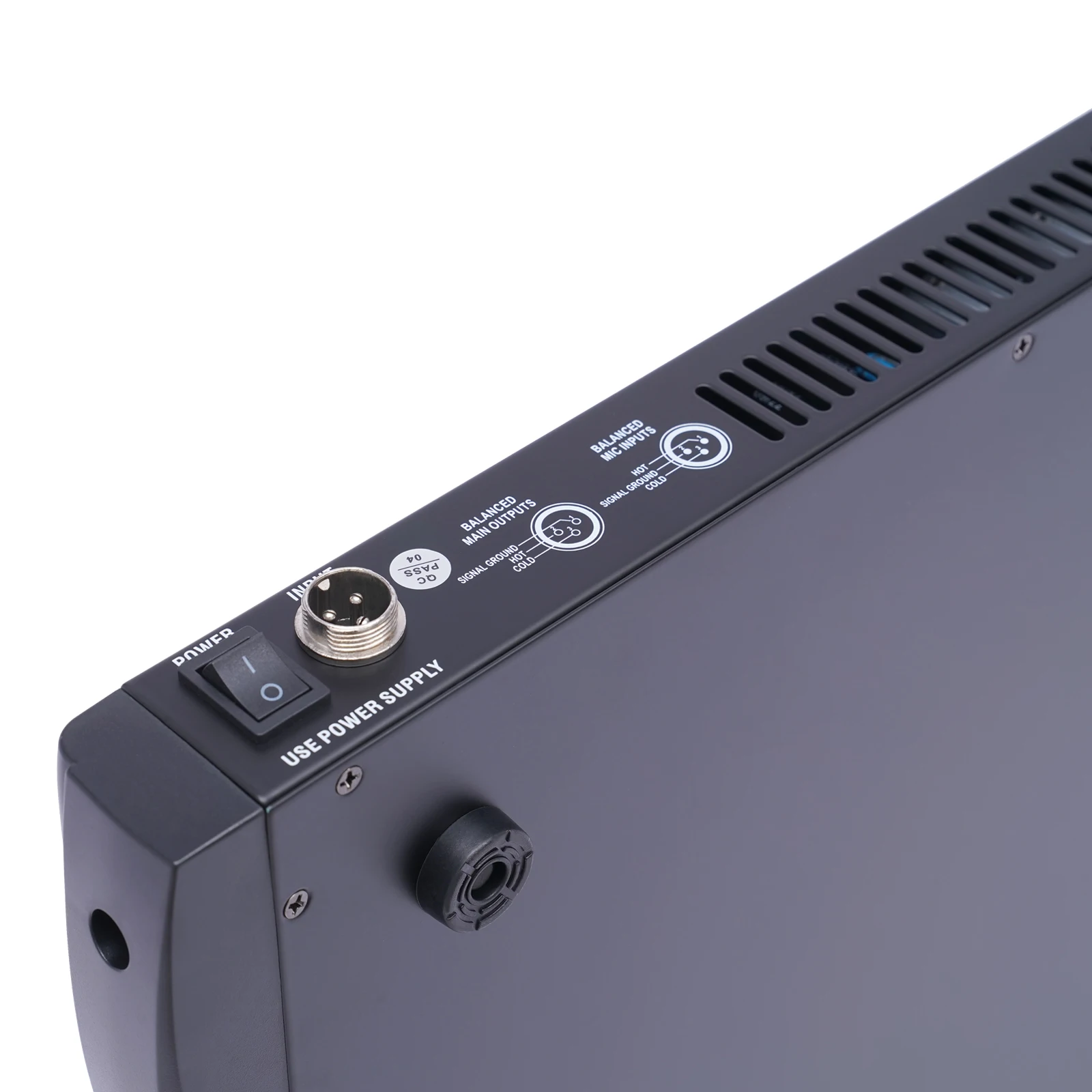

Single-touch Power Switch: The product is equipped with a one-touch power switch, which is very convenient to turn on/off the power with just one touch.

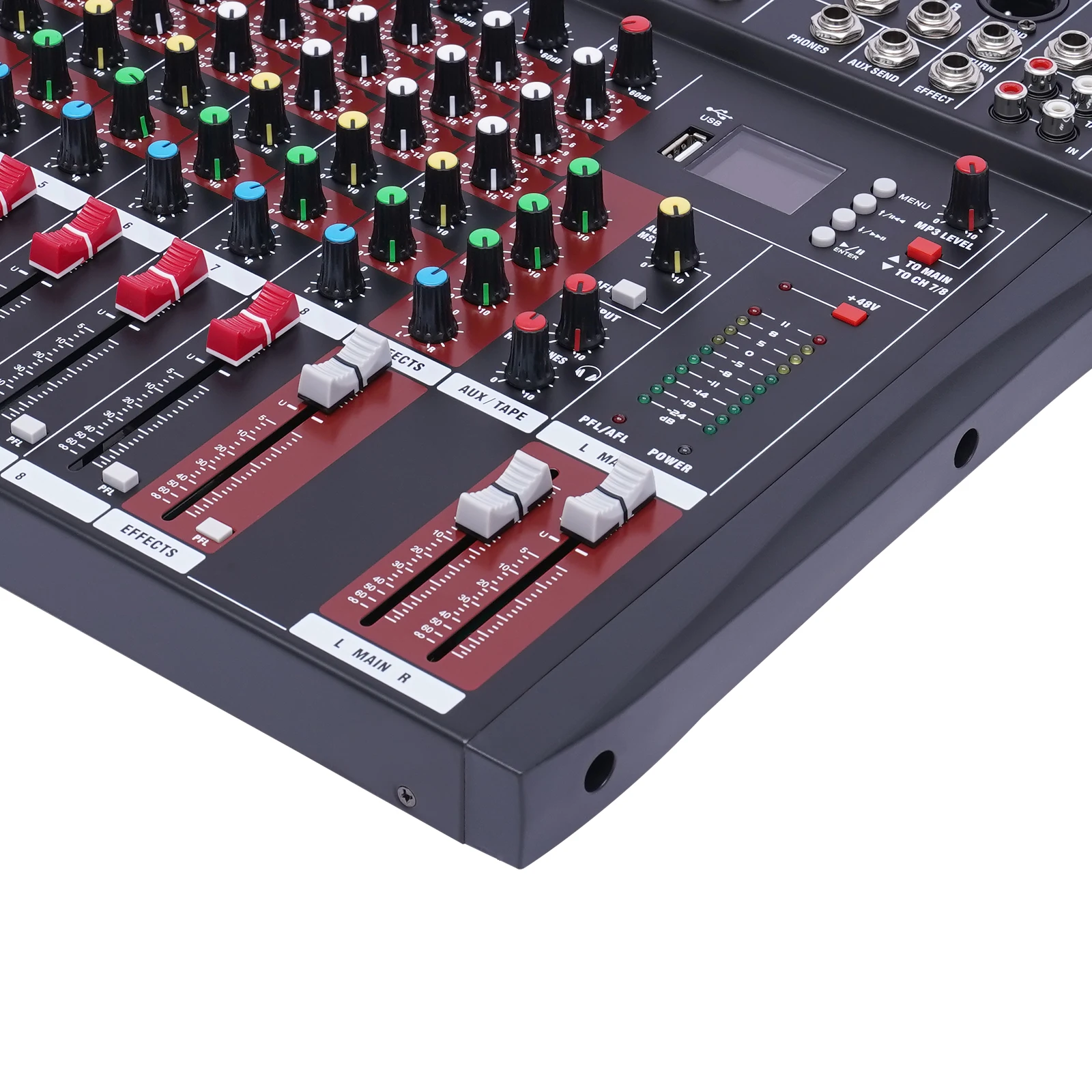

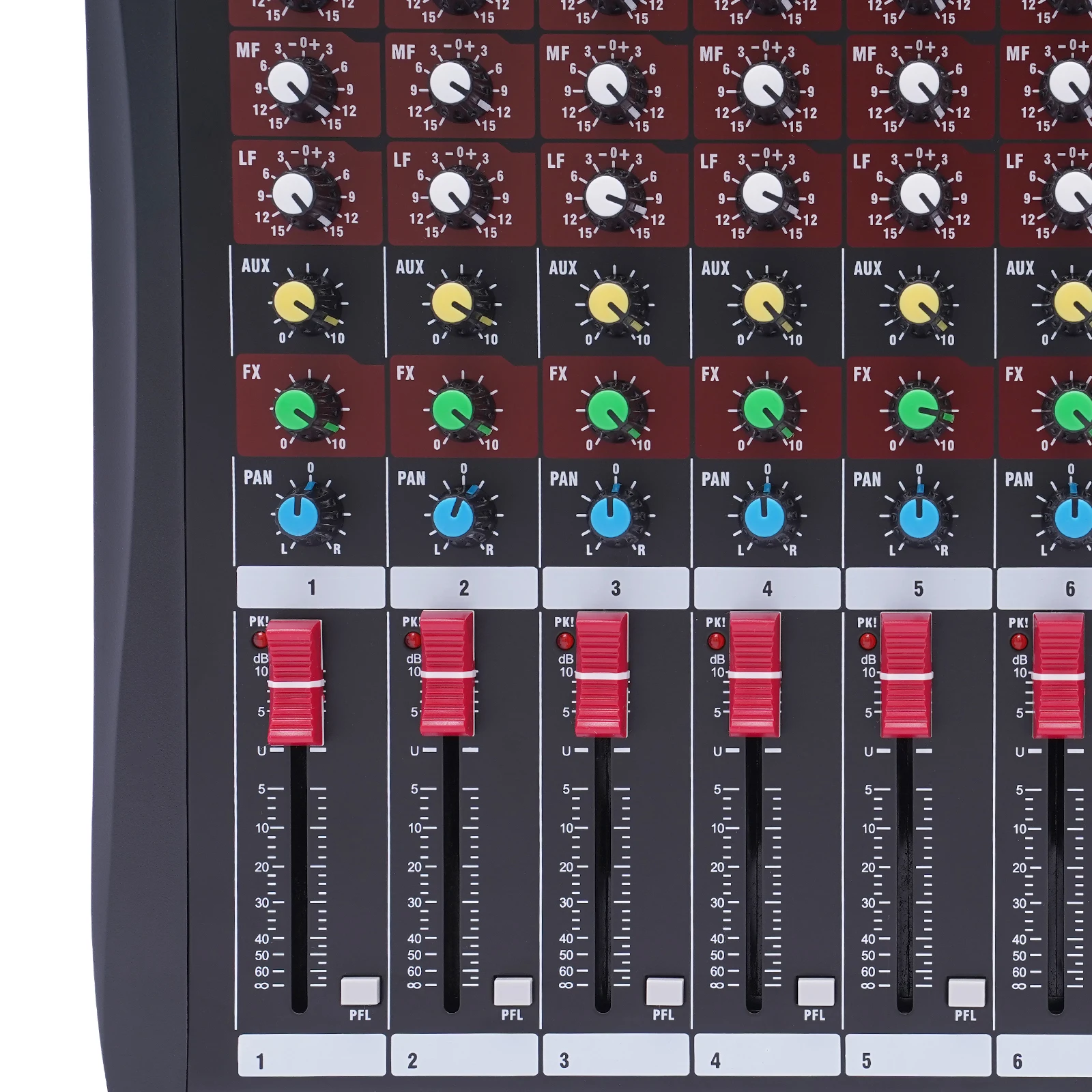

Smooth Fader: The fader is made of selected high-quality damping material, smooth and easy to push and the concave convex design is for slip resistance.
Notes:
Please allow the slight colour difference caused by the shooting light and 1-3cm error due to manual measurement.
